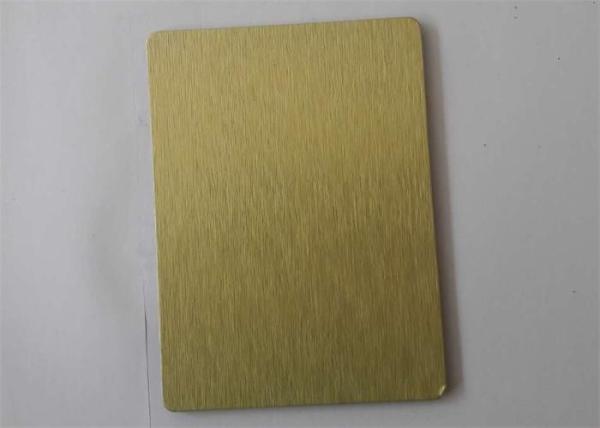

Uv Resistance Brushed Aluminum Panels Eco Friendly High Precision Solar Reflective Film
Description
The series product working process is brush finished at first base on the basic aluminum plate, then combine specially powder oxidation process, produce the brush finished aluminum plate. The series with rich color, brush style can be make base on OEM, strong bending, fit for subsequent printing process.
Alloy: 1050 1060 1070 1100
Temper:0,H12,H14,H16,H18,H22,H24
Width: 40mm ~ 1300mm
Aluminum Thickness:0.14mm ~ 0.80mm
Color: Silver, gold,customized color
Surface: Brushed finished
Shape:Coil, sheet
Applications: Decorations used, ceilings, curtain walls, moscaics,advertisement word of edge,name plate,household appliance
Alloy Chemical Composition
| CHEMICAL COMPOSITION |
| ALLOY | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | AI |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | / | / | 0.05 | / | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | / | / | 0.05 | / | 99.60 |
| 1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | / | / | 0.04 | / | 99.70 |
| 1100 | Si+Fe:0.95 | 0.05-.020 | 0.05 | / | / | 0.10 | / | / | 99.00 |
| 2024 | 0.50 | 0.50 | 3.80-4.90 | 0.30-0.90 | 1.20-1.80 | 0.10 | / | 0.25 | 0.15 | Remainder |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | / | / | / | 0.10 | / | Remainder |
| 3105 | 0.60 | 0.70 | 0.30 | 0.30-0.80 | 0.20-0.80 | 0.20 | / | 0.40 | 0.10 | Remainder |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.50-1.10 | 0.10 | / | 0.25 | / | Remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.20-2.80 | 0.15-0.35 | / | 0.10 | / | Remainder |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.00 | 4.00-4.90 | 0.05-0.25 | / | 0.25 | / | Remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.60-3.60 | 0.30 | / | 0.20 | / | Remainder |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | / | 0.25 | / | Remainder |
| 6063 | 0.20-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | / | 0.10 | / | Remainder |
| 6082 | 0.70-1.30 | 0.50 | 0.10 | 0.40-1.00 | 0.60-1.20 | 0.25 | / | 0.20 | / | Remainder |
| 7050 | 0.12 | 0.15 | 2.00-2.60 | 0.10 | 1.90-2.60 | 0.04 | / | 5.70-6.70 | 0.06 | Remainder |
| 7075 | 0.40 | 0.50 | 1.20-2.00 | 0.30 | 2.10-2.90 | 0.18-0.28 | / | 5.10-6.10 | 0.20 | Remainder |
Shipping Port: Shenzhen, guangzhou, changsha,shanghai or customized port.
Shipping Docs: Packing list, commercial invoice, bill of loading, C/O or Form.E per request.
Payment Way: T/T / Western Union / Paypal
Our company
Hunan Yorto Advanced Materials Technology Co., Ltd. was established in September 2007. Company is located in Changsha, Hunan province,China. The main business is mirror aluminum,brushed aluminum,oxide aluminum and sublimation aluminum.
Please feel free to contact us for more detail information,We are always ready to serve you.
